72 Meters Wind Turbine Blade Transport Trailer for Sale in Vietnam
The Vietnam customer found us on Google. He said that he was looking for a suitable supplier. The customer found a number of Chinese manufacturers, but they all told him that they could not do a wind turbine blade transport trailer. By chance, the customer saw TITAN's wind blade trailer locally and finally found TITAN.
The Vietnam customer and the sales manager Alice negotiated for 3 months and finally purchased a 72 meters wind turbine blade transport trailer from TITAN. The reason for his purchase was not only TITAN's quality assurance but also perfect after-sales service.

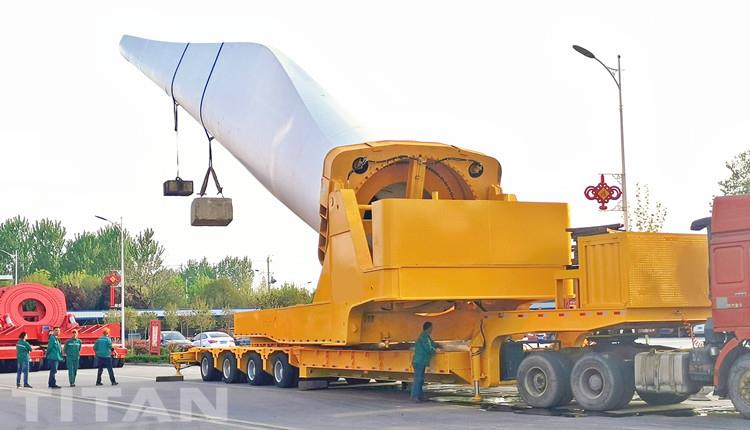

72 Meters Wind Turbine Blade Transport Trailer for Sale in Vietnam
1. On the fixed base of the blades, the low center of gravity ensures safety
The rearward setting makes the length of this wind turbine blade trailer shorter, which is conducive to driving in mountainous areas; the operation by dedicated personnel is helpful to improve safety.
Unlike conventional wind blade trailer, the length of this wind turbine blade transport trailer is very short, which is also to satisfy that the vehicle can run normally on mountain roads. You can think of it as a crane, with its walking part on the bottom and a turret on the top. The wind blades are like the boom of this crane.
The wind blades to be transported are fixed on the vehicle by bolts, and the wind blades and the base are firmly integrated. During the transportation process, the wind blades can move up and down, left and right, without danger. The up and down displacement of the base is realized by the oil cylinders arranged on both sides, which can achieve a lifting range of 0-60 degrees. In order to ensure that the center of gravity of the wind blade is unstable when it is displaced, the back of the base can prevent the counterweight to achieve for the balance of the entire vehicle, the counterweight can be flexibly added according to the weight of the wind blade. The trailer is equipped with 275/70R22.5 size tires, the purpose is to reduce the height of the entire vehicle, not only more convenient when loading and unloading, the lower height also ensures the stability of the vehicle during operation.

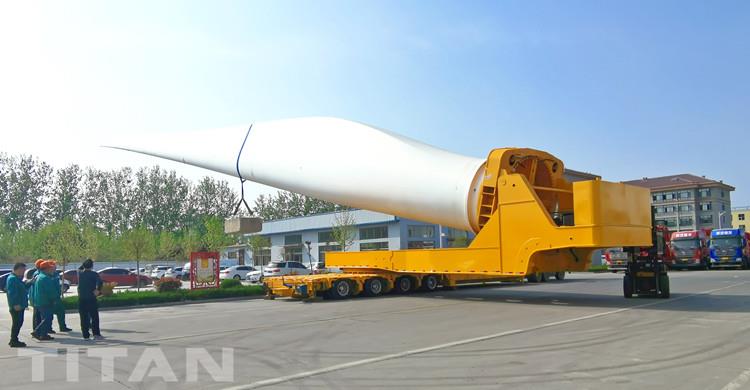

72 Meters Wind Turbine Blade Transport Trailer for Sale in Vietnam
2. Inspired by cranes, air conditioning improves comfort

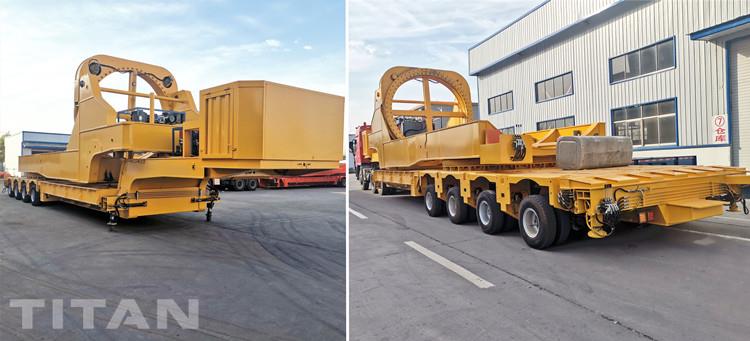

The turret is fixed on the wind turbine blade transport trailer, and the hydraulic motor drives the gear fixed under the turret to realize the rotation of the entire base. The turret can theoretically realize a 360-degree rotation.
If the wind blade is so long, the force generated by the frontal wind is very terrifying, and if it is held high, it is very likely to overturn the wind turbine blade transport trailer. To solve this problem, the base can rotate along the axis of the blade under the premise of satisfying the lifting requirement, so that the windward side of the blade is always on the side with the smallest area.
3. A diesel engine is mounted on the wind blade trailer, and the hydraulic pump directly connected with the rotating shaft provides the power source for the upper part.
The square welded oil tank is used to store hydraulic oil and can provide all heat dissipation capabilities, so there is no radiator installed. The upper part comes with a battery and a fuel tank, and the arrangement of the pipeline is dazzling. It would be better if it can be straightened out. The hydraulic motor that realizes the rotation of the turret and the fuel tank that provides grain for the diesel engine. The entire upper part is operated by a dedicated person, and the operating principle is basically similar to that of a crane. In order to improve the comfort of the operator, an air conditioner is installed in the operating room.

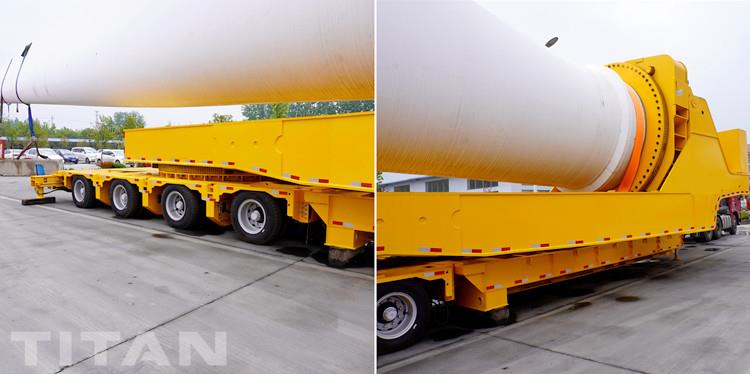

72 Meters Wind Turbine Blade Transport Trailer for Sale in Vietnam
