In the wind power industry, TITAN provide all types transportation solutions for the widely power industry use. This model is baldes wind turbine lifter adaptor for wind turbine transportation.
When the extendable blade transport vehicle cannot reach the designated location due to the influence of road traffic conditions, it is necessary to use the windmill rotor special secondary transfer blade lifter for sale. This windmill blade adapter model requires the use of 3 line 6 axle lowbed or moudlar trailer as the bottom recessed cargo platform.
The special blades wind turbine rotor lifter can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which greatly improves the passability of the blades in complex road sections and mountain wind fields. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.

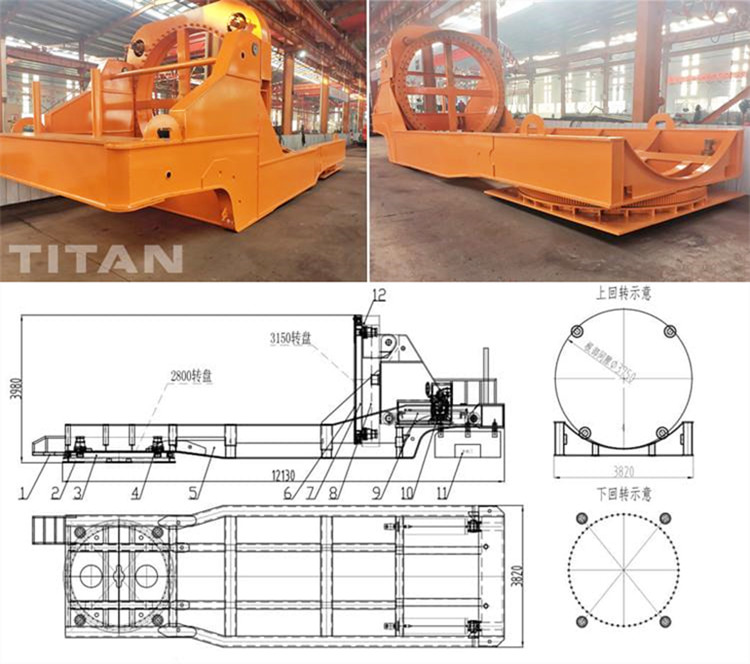

Blades Wind Turbine Lifter Adapter will be sent to Kazakhstan
The length of this windmill rotor blade lifter is very short, which is also to satisfy that the vehicle can run normally on mountain roads. You can think of it as a crane, with its walking part on the bottom and a turret on the top. The wind blades are like the boom of this crane.
The wind blades to be transported are fixed on the vehicle by bolts, and the wind blades and the base are firmly integrated. During the transportation process, the wind blades can move up and down, left and right, without danger. The up and down displacement of the base is realized by the oil cylinders arranged on both sides, which can achieve a lifting range of 0-60 degrees. In order to ensure that the center of gravity of the wind blade is unstable when it is displaced, the back of the base can prevent the counterweight to achieve for the balance of the entire vehicle, the counterweight can be flexibly added according to the weight of the wind blade.

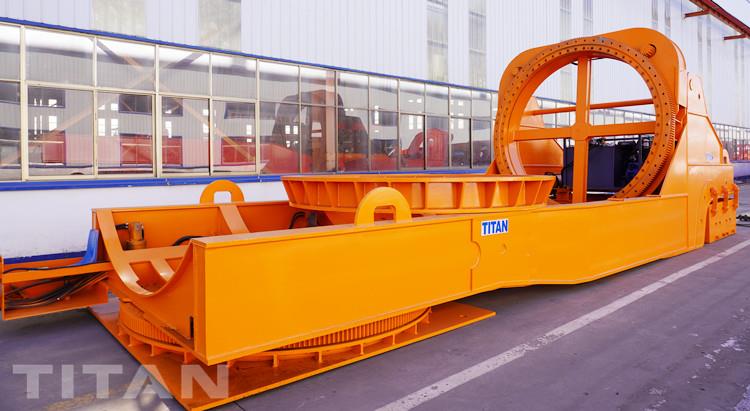

Blades Wind Turbine Lifter Adapter will be sent to Kazakhstan
The turret is fixed on the windmill blade turbine adapter, and the hydraulic motor drives the gear fixed under the turret to realize the rotation of the entire base. The turret can theoretically realize a 360-degree rotation.
If the wind blade is so long, the force generated by the frontal wind is very terrifying, and if it is held high, it is very likely to overturn the windmill blade transport adaptor. To solve this problem, the base can rotate along the axis of the blade under the premise of satisfying the lifting requirement, so that the windward side of the blade is always on the side with the smallest area.

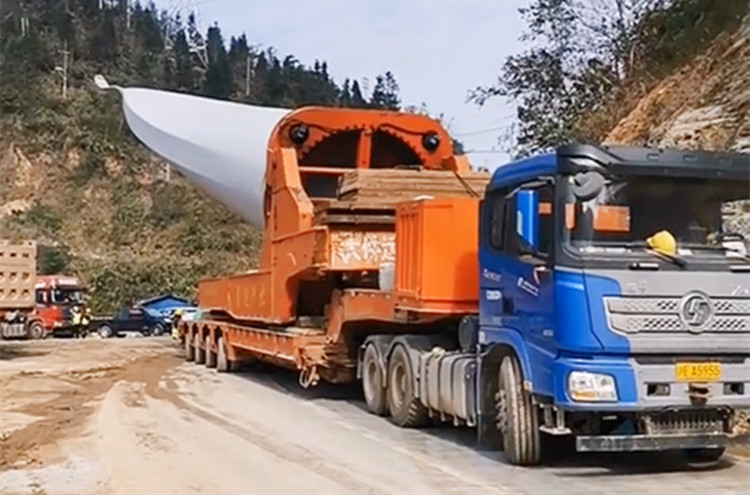

Blades Wind Turbine Lifter Adapter Application in Kazakhstan
