Windmill Rotor Blade Adapter Trailer for Sale in Vietnam
Vietnamese customers found our company through web search and left contact information on our company's official website. Then our sales contacted Vietnamese customers, figured out customer needs, provided customers with professional advice, and finally decided on a series of production details. Customers buy wind vanes mainly for the transportation of wind vanes. They chose our company after many comparisons, and the process of cooperation is very pleasant.
Now, the windmill rotor blade adapter trailer has been produced, and finally after a series of strict tests, the vane car can be sent to the hands of Vietnamese customers.
Windmill Rotor Blade Adapter Trailer for Sale in Vietnam
blade adapter trailer, how long is the wind turbine blade trailer? blade trailer, wind blade trailer, wind turbine blade trailer, 35m, 42m, 45m, 56m hydraulic steering wind power equipment transporter, 16m- 17.5m pull-out low flatbed semi-trailer. mountain blade transport tooling. the wind blade transport semi-trailer, 35m wind blade transport semi-trailer, as the name suggests, is a vehicle used to transport wind power blades. the biggest feature of the wind blade transport semi-trailer is that it is super long and has longitudinal telescopic function. due to the long model, it greatly increases the difficulty of turning. , in order to overcome the difficulty of driving in curves, the vane transporter is generally equipped with a hydraulic steering system.
The pull-out vane transport semi-trailer can be up to 50 meters long. Three-axle balance type, remote control power steering, and mass balance blocks are installed between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs change in equal amounts, and the front and rear axles are stressed. balance etc. The total length is 460000 /(17.5﹡22﹡6.5) X3000X1810m, which can be fully opened, the bearing capacity is designed according to 80 tons, the beam height is 550mm, the width is 300mm, the beam buckle box type, the side beam is 250mm I-beam, the cargo surface is 850mm lower, and the bottom plate 4# tread plate, tire 11.00R-20. This model is specially designed for transporting wind turbine blades, and the length can be retracted to 44 meters. 51m wind turbine blade transport semi-trailer.
Windmill Rotor Blade Adapter Trailer for Sale in Vietnam
There are three types of windmill blade trailer: ordinary pull-out windmill blade trailers, axle-type windmill blade trailers and lift-type windmill blade trailers. Here we will introduce to you:
(1) The ordinary pull-out windmill blade trailer is somewhat similar to the low bed trailer, but its main beam adopts a box-type design. It is understood that the maximum length of domestic vane transport vehicles can reach 50 meters
(2) The biggest difference between the axle-type windmill blade trailers and the ordinary pull-out windmill blade trailers is that the chassis adopts the hydraulic shaft design, which makes the cargo platform of the vane transporter lower and the steering more flexible
(3) The lift-type windmill blade trailer is a blade transporter equipped with a hydraulic lifting device, which is mainly used for the transportation of blades in mountainous areas. When the road is flat, the blades are transported horizontally. When the turning radius in the mountainous area is small, use the lifting device to raise the height of the cargo (usually 5-10m high), shorten the length of the vehicle, and bypass obstacles.

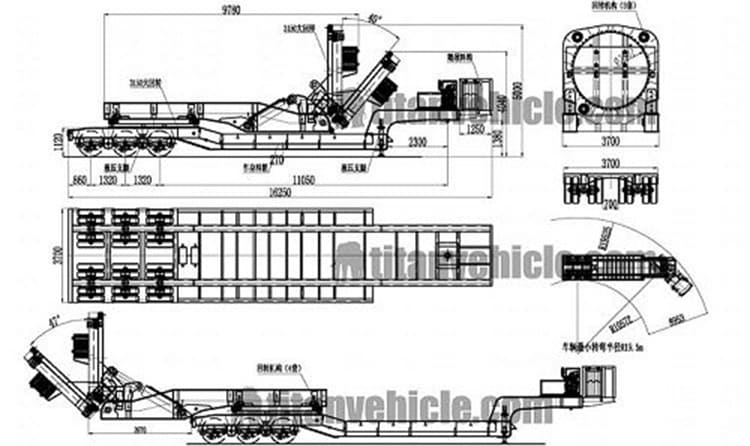

Drawing of Windmill Rotor Blade Adapter Trailer
