10 Axle Extendable Low Bed Trailer will be Sent to Vietnam
Remember this 10 Axle extendable semi trailer? The 10 axle extendable low bed trailer successfully shipped to the port. This is the picture taken by our freight forwarder. Alice, the sales manager, will send it to the customer and inform him that his semi trailer has been sent to Vietnam.

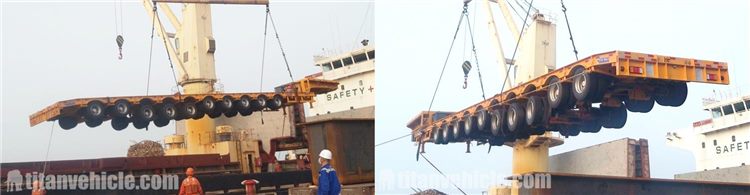

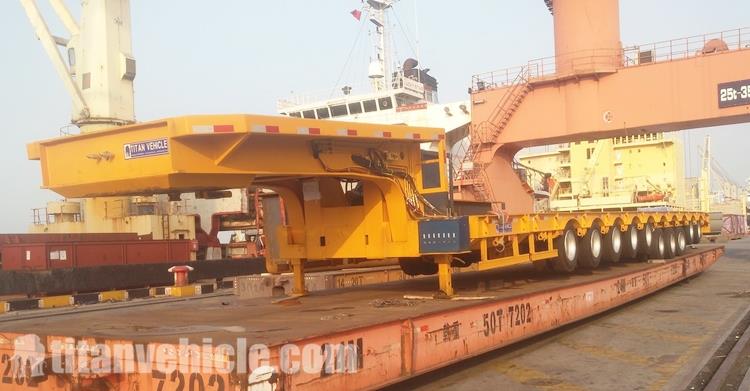

10 Axle Extendable Low Bed Trailer ready for shipment
Extendable low bed trailer:
The extendable low bed trailer is a kind of special low bed trailer which is designed for the oversized cargo delivery. This type of low bed trailer usually doesn't have the ladder, because it's special used for the heavy equipment transportation such as the wind tower transport. Extending low bed trailer usually has two types, it's width-extendable and length-extendable, two types. The side extending type low bed trailer is usually used for the width oversized cargo delivery, the width of the extending low bed trailer is different from 3000mm to 5000mm. Length extending type low bed trailer is used for the length of oversized cargo delivery. The length after extended can be up to 25000mm. The special type is the width and length both extendable low bed trailers, usually used for wind tower transportation.
Detachable low bed trailer:
Detachable low bed trailer is a specially designed type of low bed trailer without ladders on the rear, it's a front-loading type low bed trailer. This type of low bed trailer has a super low working platform, normally on 400mm. This design is used for super heavy equipment transportation. Normally over 100 tons. It's an oversized transportation low bed trailer with a width of 3000mm to 4000mm, the length is normally 16000-17000mm. The detachable low bed trailer can be designed according to the customers' special requirement.
Features of Extendable Trailers
Three options of axle: mechanical leaf spring suspension, hydraulic axle suspension, and airbag suspension. The hydraulic steering system minimizes the turning radius, increases the flexibility of the whole extendable trailer.
Hydraulic modular trailers are options to replace the rear axle module, to increase payload capacity and maneuverability. All wheels steerable. When no-load, the telescopic beam can drawback to shorten the total length of the extendable trailer. Extendable telescopic beam/boom protects wind turbine rotor blade from any damages or distortions during logistic, it just performed like bracket holder of the rotor blade. Please go blade trailer if you need to know more info.
These extendable trailers take different forms. A trailer mechanism is provided for coupling to a pivot-able trailer ramp to help during the manual lowering and lifting of a ramp. The ramp’s lateral positioning is made possible in order to accommodate different load bases. With such possibilities, you can make the most suitable adjustments to ensure that your load is safely seated on the trailer without fears of falling off during transportation. Typically, extendable trailers make it possible for users to have many options that enhance the safety of their operations unlike when using fixed frames entirely..
The extendable trailer structure is a trailer mechanism that is designed and adapted to be towed and used when the tractor is traveling along the road. The extensions on the trailer can effectively bear loads that may have different lengths due to work needs.
