The removable gooseneck lowboy trailer can be matched with various tractors, and the height of the trailer's load-bearing surface can be adjusted according to needs.
The structural composition is basically composed of traction system, transmission system, alignment adjustment system and locking system. The gooseneck lowboy trailer is mainly separated or hooked by manually operating the hydraulic device mounted on the goose head, so as to reach the construction machinery from the front of the trailer.

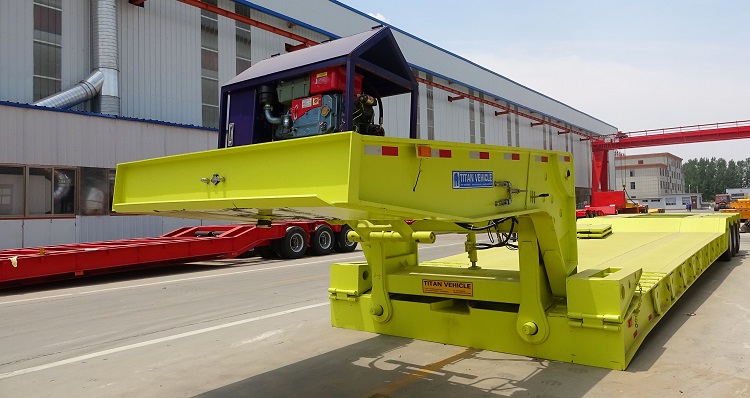

100 tons lowboy trailer for sale
When it is necessary to improve the passage of the trailer, the load-bearing surface can be raised; when the whole truck needs to be lowered When the total height is reached; the load-bearing surface can be reduced, which greatly improves the use performance, passing performance and safety performance of the vehicle, and can quickly realize the loading and unloading of large-scale projects and other walkable machinery without the help of climbing ladders, which greatly improves the loading and unloading efficiency, which is useful for construction The construction engineering unit provided a strong guarantee.
This kind of vehicle is mainly suitable for the transportation of large construction machinery with small climbing ability. Of course, construction machinery with a large ladder angle can also be transported. It solves the shortcomings of the current ladder slope angle is too large and poor passability existing in the rear loading and unloading of the lowbed trailer.

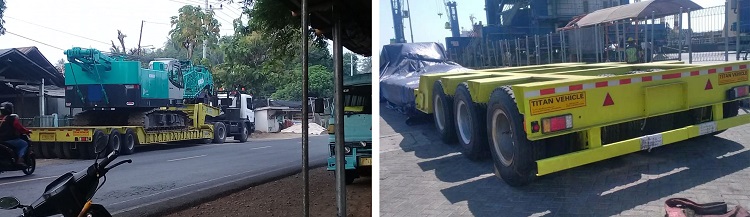

Feedback of mining lowboy trailer
1. Easy operation
The lifting operation handle of the bearing surface mostly adopts the centralized electric control device, rather than the traditional handle to control the operation, so that the operation interface is more convenient.
TITAN hydraulic system has undergone five major system upgrades in the ten-year production process, and now the hydraulic system has very good stability and stability The customer only needs regular maintenance. It can be used for ten years.
2. Strong carrying capacity
TITAN lowboy trailer main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.

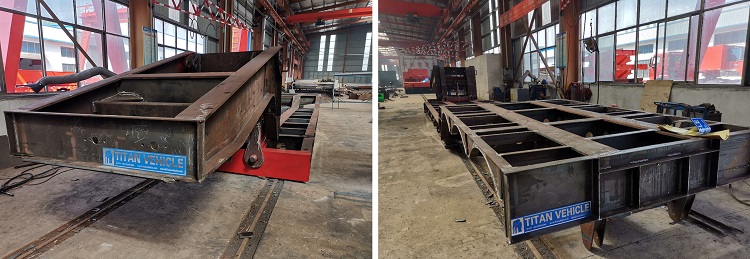

factory of gooseneck lowboy trailer
3. Low center of gravity and good stability
Due to the low ground clearance and low longitudinal beam height of this kind of vehicle, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable lowboy semi-trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
TITAN lowboy trailers bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
4. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.

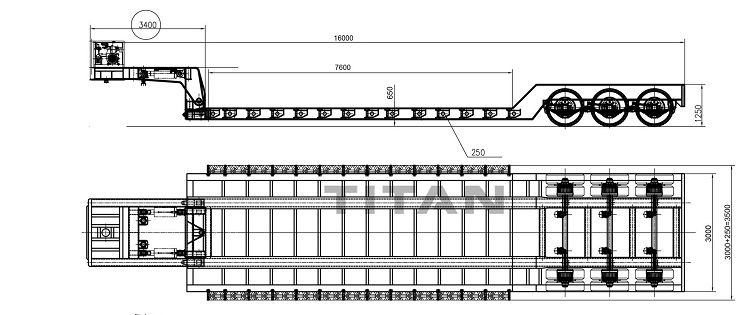

Drawing of 3 axle lowboy trailer for sale
TITAN can make the 2/3/4 axles detachable gooseneck lowboy trailers and 3 lines 6 axles heavy duty rgn lowboy trailer, with the capacity of 60/80/100/120/150 ton. The color can be customized according to customer needs. To meet your transport needs and your local regulations, we can customize different configuration removable gooseneck lowboy trailer for you.
