Wind Turbine Blade Transport Trailer for transport rotor blade, wind blades. That is best solution to avoid obstacles, such as buildings and trees effectively, especially running on steep hills or narrow winding mountainous roads.
Hauling wind turbine blades mainly includes wind blades, nacelles, hubs and towers, and each component is an over-limit item for ordinary road transportation, which requires professional wind turbine blade transport trailer for transportation and assemble a wind turbine. So wind turbine transportation companies need a windmill blade trailer for sale.
(1) Ordinary extendable flatbed trailer
This transport method generally uses ordinary extendable flatbed trailer to transport wind blades. The characteristics of this extendable trailer for sale are that it can be extended and retracted to accommodate blades of different lengths.
These can be used to transport both wind blades and the tower. This is the kind of wind turbine transport vehicles that you need if you want to handle the different kinds of loads in your operations. Extendable flatbed trailer design and construction are meant to take care of these needs.
The tail platform forms the rear section of the extendable trailer for sale. mega windmill transporter can either be a folding or pulling platform configuration. Therefore, users can choose a telescopic trailer based on these tail platform configurations.

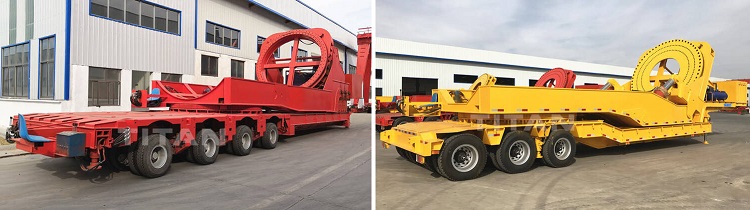

(2) Windmill blade transport trailer

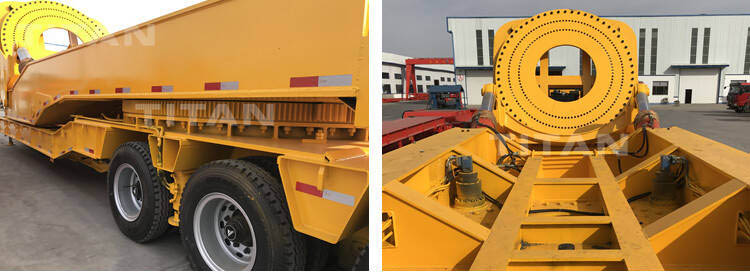

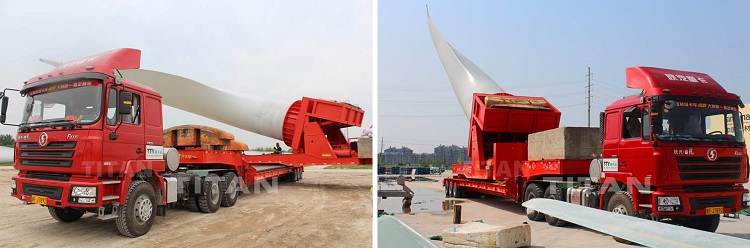

This transportation method generally uses a special blade transportation wind turbine blade transportation with blade lifting-rotating-hydraulic rear wheel steering. The special wind turbine transport vehicles can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades. The total length of the transport windmill trailer body can improve the curve passing performance.
(1) Advantages of turbine blade transport trailer
The blade rotates flexibly, and the transformation cost is small. The blade sweeping area of the special wind blade adapter trailer blade lifting and transportation method is larger than that of an ordinary extendable trailer for sale. The blade sweeping area is large, and the area involved in the renovation project in the curve is reduced by about 10 times.
Blades can be transported by lifting, which can better avoid high mountains and cliffs, or house buildings, so about achieve rapid blade transportation. At the same time, this method can also reduce the cost of road reconstruction and house demolition, which can help improve blade transportation efficiency and engineering benefits.
(2) Disadvantages of wind blade adapter trailer
1. High transportation costs. The transportation cost of using special windmill blade trailer for sale is higher than that of ordinary flatbeds. For a wind farm with an installed capacity of 50MW, if it is transported by special windmill blade trailer for sale, the transportation cost will increase by about 3.5 million yuan.
2. There is a lot of work to clear the height limit. After the blade is lifted, the height is high, and the net height along the line is increased. Compared with ordinary flatbed transportation, it will increase the removal of height-limiting objects (such as cross-road cables, pipes, branches, etc.).
3. Need to increase weight. Since the blade’s center of gravity increases after the blade is lifted, windmill blade trailer for sale is not conducive to stable transportation. It is necessary to place a weight on the front of the vehicle and avoid windy weather transportation.
Wind farm transport and windmill tower carrier trailer, just like for any other type of wind turbine blade trailer must be thoroughly scrutinized before making the final buy decision. After identifying your needs, you should be able to know the kind of trailer you are looking for. However, that is not all that you will always need.
There are some other aspects to look into including the trailer quality, delivery times, ability to customize and its reliability among others. Need more details of extendable trailer, you can contact us.
