Features about Extendable Flatbed Telescopic Trailer

2020-12-23
Features about Extendable Flatbed Telescopic Trailer

The transportation industry has different types of vehicles and platforms that are used to meet different demands and needs. One such means of transportation used is the extendable trailer.

Just like is the case with other means of transportation, this type of trailer is suited for certain applications that would otherwise not be addressed through the use of other types of transportation platforms and/or vehicles.

Whether too long or too wide, any load can comfortably be loaded and transported using an extendable trailer towed by a tractor truck. Detailed in here is extensive information about what makes this type of trailer and where it is used.

Features about Extendable Telescopic Trailer

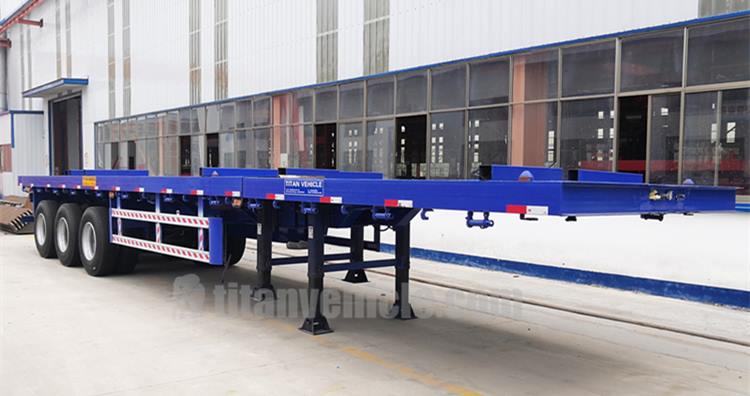

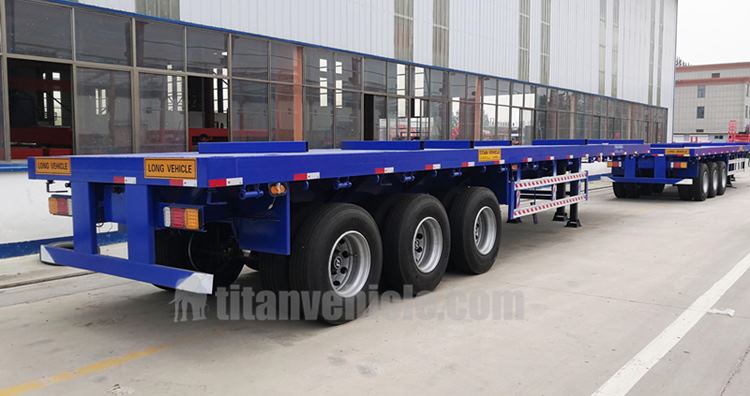

Extendable trailer and telescopic trailer for sale from China TITAN VEHICLE are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. Total length can reach up to 60 meters.

The extendable trailer’s original design is using the mechanical axle, just like a low-bed trailer connect with a telescopic beam to make its length adjustable, so enable the trailer to adapt to different lengths of cargos.

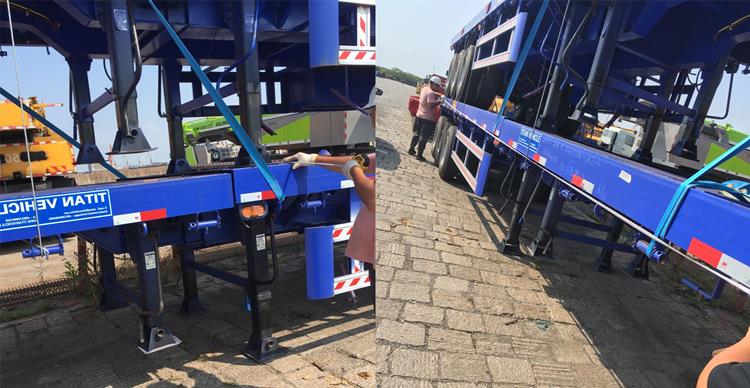

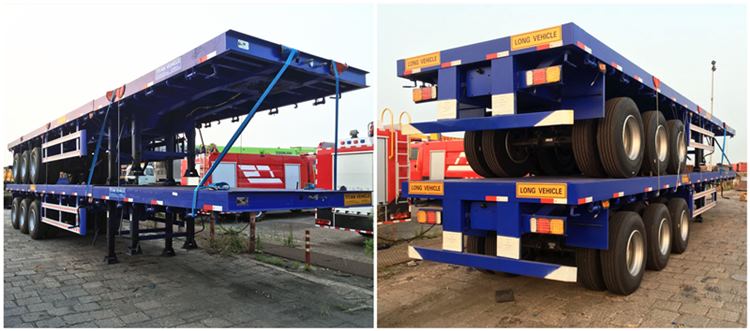

The telescopic beam could be mounted in other semi-trailers, giving you an extendable flatbed trailer, extendable drop deck trailer as well as extendable lowboy trailer.

Features about Extendable Telescopic Trailer

Features of Extendable Trailers

Three options of axle: mechanical leaf spring suspension, hydraulic axle suspension, and airbag suspension.

The hydraulic steering system minimizes the turning radius, increases the flexibility of the whole trailer.

Hydraulic modular trailers are options to replace the rear axle module, to increase payload capacity and maneuverability.

Features about Extendable Telescopic Trailer

All wheels steerable.

When No-load, the telescopic beam can drawback to shorten the total length of the extendable trailer.

Extendable telescopic beam/boom protects wind turbine rotor blade from any damages or distortions during logistic, it just performed like bracket holder of the rotor blade. Please go blade trailer if you need to know more info.

Sometimes we can use the extendable trailer to transport the windmill blades and transport other heavier and longer cargos.

Features about Extendable Telescopic Trailer

As a manufacturer, we also produce a more robust version of the extendable telescopic trailer beam. The unique design combines trailer hydraulic trailer, and the beam can also connect to other specialized trailers like Scheuerle trailer and Nicolas trailer. The beam has the function of connection between gooseneck and rear axles, also can bear weight on top of it.

The telescopic beam can extend (stretch out) from 10 meters to 30 meters, and other customized dimensions are available.
