The side wall trailer driver's mentality and driving skill level have a more direct impact on fuel consumption. According to measurements, Drivers with different technical proficiency can save fuel by 8% to 10%.
1. Please close the windows
In order to save fuel, it is not advisable to turn off the air conditioner at high speed and open the windows to ventilate. This is not desirable. When the speed is higher than 85 kilometers per hour, the wind resistance after opening the window consumes more fuel than the air conditioning system consumes. Let the fuel economy index drop by 10%.
2. Appropriate tire pressure
Check the side wall cargo trailer tire pressure regularly to ensure that the tire pressure is normal. Underinflating a tire can have a very negative effect on tire performance and durability. Too high or low tire pressure will shorten tire life and increase fuel consumption.
The quality of the tire has a great impact on fuel consumption. Compared with products of the same specifications, high-quality brand fuel-saving tires can reduce fuel consumption by an average of 2%.
3. Frequently replace wearing side wall semi trailer parts
Vehicle consumables, such as air filters, gasoline filters, and oil filters, should be replaced in a timely manner, and every 5,000 kilometers or more, because the blockage of the air filter will reduce the amount of gas, resulting in insufficient gasoline combustion And reduce fuel efficiency.
Why choose TITAN side wall trailer?
TITAN is one of the leading manufacturers of side wall trailers. Our trailers are designed with operators in mind, who expect the highest standards of performance and build quality. Side wall trailers are robustly designed and built, last longer and require minimal maintenance - and yet they have an amazingly low un-laden weight. Whether you are hauling cement, steel, construction materials, etc each side wall trailer is engineered with robust capacities you can rely on. The construction is composed of a one-piece high-quality steel main beam, a strong floor with Sidewall frame and many more components that provide very beneficial weight savings to customers.
Different configurations are different prices, conventional model side wall trailer price, you can download the Quotation
Tare Weight: About 7.6T
Dimension(mm): 12500x2500x3350mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 13 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Trailer Sides: 600-2000mm, or box type sides
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

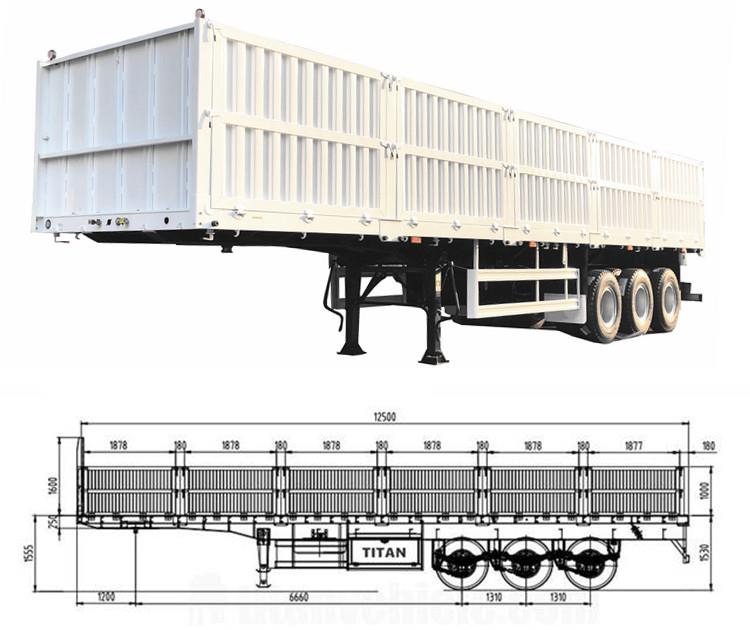

TITAN 3 axle 60 tons side wall trailer drawing
TITAN is one of the leading manufacturers of side wall trailer and its trailers are designed keeping the road conditions and the drivers in mind who expect the highest standards of performance and international quality. It has gained immense accolades among its customers with its best efforts, hard-work of its professionals to relish the success as a leading manufacturer of Side Wall Trailers.
As the cost of fuel, parts, labour, and general maintenance increases you need to maximize your equipment's pay load per mile. With TITAN side wall trailer you can do just that.

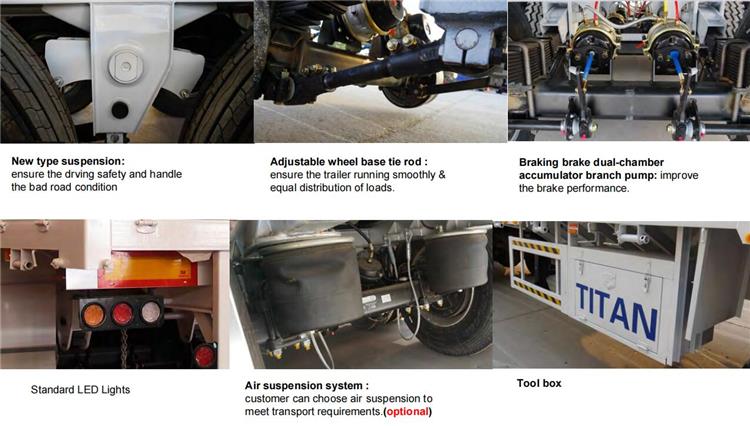

TITAN side wall trailer details display
1. TITAN offers an extensive range of high-quality Side Wall Trailers with the valuable assistance of a skilled-team of professionals. Side sall trailers are manufactured using optimum quality raw materials and the latest production technologies in order to ensure its strength.
2. TITAN side wall trailers are robustly designed and built, last longer and require minimum maintenance with an amazing low unladen weight.
3. Whether you are loading cement, steel, any construction materials, etc, TITAN side wall semi trailer is engineered with robust capacity you can rely on.
4. The construction is composed of a one-piece high-quality steel main beam, a strong floor with sidewall frame and many more components that provide very beneficial weight savings to its customers.
