Tri Axle 80 Ton Low Loader Trailer for Sale In Nigeria Lagos
Mr. Nick, a Nigerian customer, is an old fan of TITAN Facebook. Although he has not purchased TITAN’s semi trailer, he has introduced us to many local customers. Mr. Nick saw feedback from Uruguayan customers on the TITAN Facebook before, and the customer immediately contacted us and said that after this, a similar 3 axle low loader trailer may also be needed.

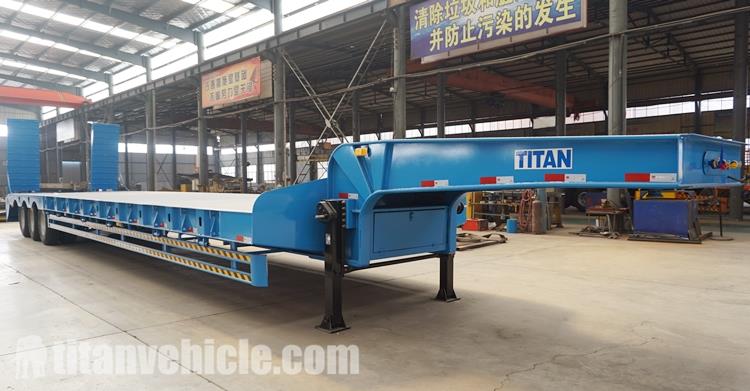

In January 2021, we received the customer's order, and the sales manager Ada processed the detailed configuration for a total of 2 days. On the third day, the customer bought the tri axle 80 ton low loader trailer. Below is the completed picture.
3 Axle Low Loader Trailer for Sale Manufacturer
1. The side beams are generally channeled steel or bent parts. At present, most trailers use channel steel. There will be more side beams for light-weight hanging parts because the requirements for strength are not too great. Support beams are through beams, and most of them are now W beams.
2. The traction pin is an important component that connects the low loader trailer to the tractor and bears the traction force and is connected to the traction seat. It is generally forged from chromium alloy structural steel. For different cargo tonnages, there are 50# traction pins and 90# traction pins. Generally limited to the total weight of 50T trailers and cargo, 50# pins are used for those below 50T, 90# above 50T, and 90# traction pins are used for insurance purposes.

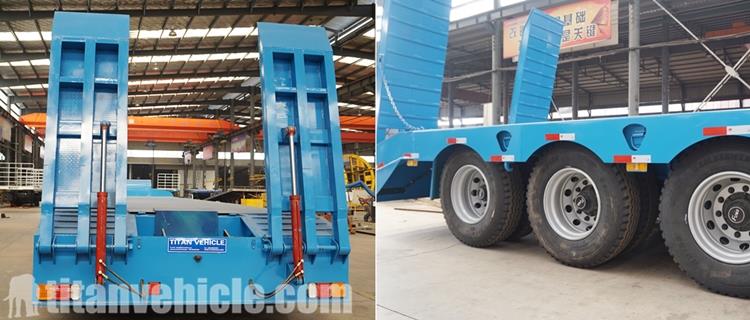

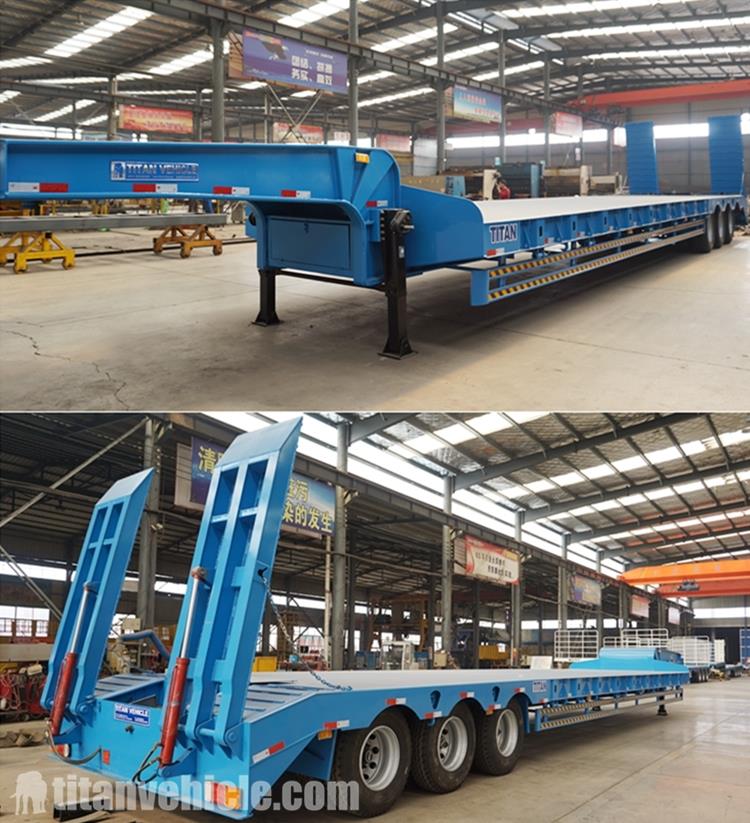

Details of Tri Axle 80Ton Lowbed Semi Trailer
3. The general 3 axle low loader trailer suspension is made of non-independent steel plate stamping rigid suspension, composed of tandem steel plate springs and suspension bearings, which are used to support the load and slow the impact of the dynamic load of the vehicle.
4. The 80Ton Low Loader Trailer for Sale axle is the support bridge. The American and German axles are the most popular in China. The axles are connected to the frame through leaf springs and tie rods and suspension devices to connect between the frame and the wheels. The force that supports and transmits loads.
5. The electrical system consists of seven-core sockets, cables, gas circuits, various lamps, etc., used for lighting, safety warnings, and air supply for brakes. Generally, you can basically know how the quality of the factory is based on the regularity of the electrical wiring.

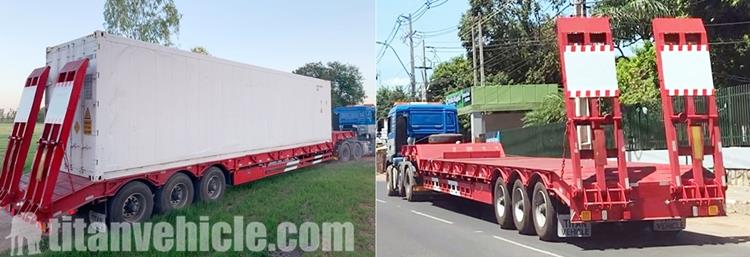

Feedback of Uruguay Customers 3 Axle Low Loader Trailer
6. The support device of Low loader trailer is mainly used to support the trailer when it is disengaged, and it is composed of outriggers and connecting brackets.
7. Other accessories on the semi-trailer include tool boxes, spare tire racks, gantry racks, and piles. There are also some small accessories such as rope tighteners, rope hooks and other highly functional accessories, which should be selected according to the type of goods.

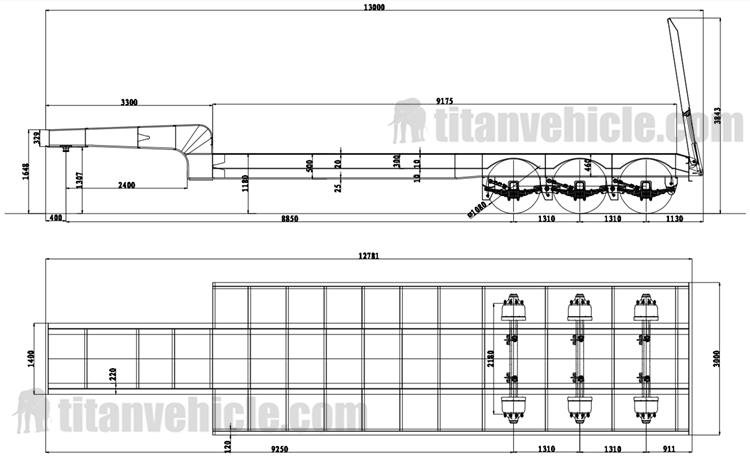

Drawing of 80Ton Lowbed Semi Trailer
