How are windmills blades transported?-Wind Turbine Blade Transport for Sale

2020-10-29
How are windmills blades transported?-Wind Turbine Blade Transport for Sale

TITAN is a heavy transporter manufacturer. And we produce special trailers for the wind power mill equipment transport. such as Extendable flatbed trailer,Extendable modular trailer and Windmill blade adapter for the blade transport. Also, we produce windmill tower adapter for windmill tower transport.

TITAN has two structures of the Windmill blade adapter. Windmill blade A Generation and Windmill blade B Generation. The difference between the A and B is the oil cylinders' position. Generation A adapter uses the big cylinders to raise us the adapter, and the Generation B adapter uses the cylinders to pull the adapters. One adapter could has some Flange plates. And one flange plates could meet 7 specifications of the windmill blade.

TITAN produce special low bed trailer and hydraulic modular trailer for the adapter. Because the windmill blade transport should has some balance cargo, so we make the trailer be hollow to be fulling with sands, etc.

Wind Turbine Blade Transport for SaleWind Turbine Blade Transport for Sale

How are windmills blades transported?

Modern day wind farms are becoming major contributors to the world power supply, serving as proof of the interest and commitment to using alternative energy. But these farms couldn’t be built without the equipment used to transport the turbine components from the manufacturer to the construction site. In the past, trailers used to mobilize the equipment on site lacked the safety, easy-of-use and the hauling capacity required of today’s offerings.

Windmill blade trailer is among the most innovative and advanced trailers in China. The windmill blade tailer is a leading edge, innovative wind turbine blade trailer to satisfy all your wind energy transportation needs. With fewer mechanical connections from the fifth wheel to the steered axle, you can save on height, weight, and maintenance. With its customized steering functionality, you can drive forward and backward. Its automatic centering device, when active above a certain speed, offers you the stability of a fixed axle.

Wind Turbine Blade Transport for Salewind turbine blade transport

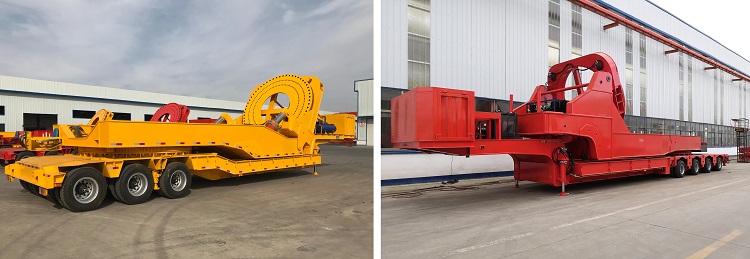

Wind turbine blade trailer

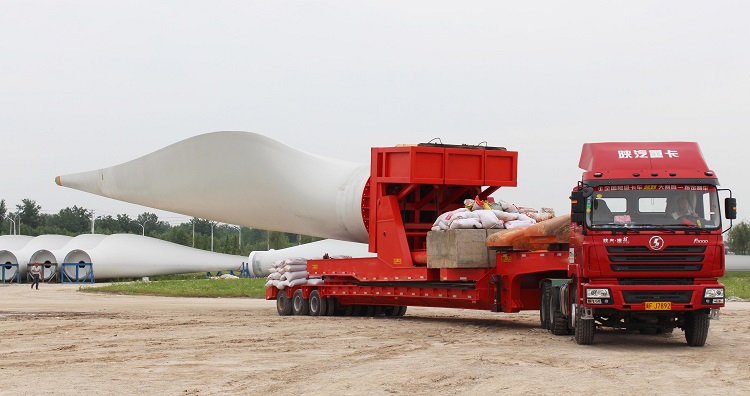

In this design structure, the turbine blade is fixed on the adapter. What makes this trailer special is that the adaptor is customized for the blade. Although usually made from the best materials with sufficient yield strength, their custom design for taking blades may not make it a fit choice for other types of loads.

That means hauling wind turbine blades will unlikely be used for another function. It is the kind of wind blade trailer you need if all you want to do is transport wind turbine blades only.

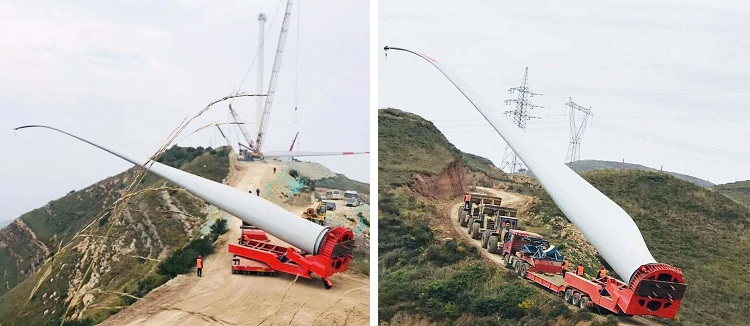

These types of blade carrier trailers are used to transport turbine blades on mountain roads and curved roads as well. Because of the fact that extendable trailers too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

Wind Turbine Blade Transport for Salewind turbine blade transport trailer

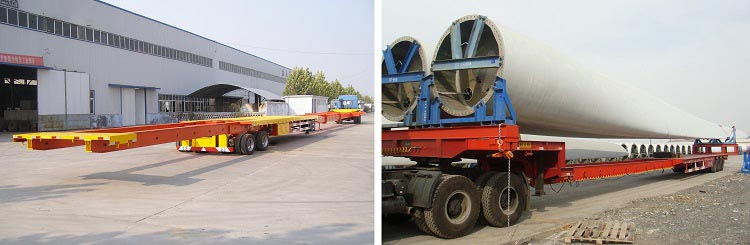

Wind blade transportation extendable trailer

The extendable beam feature is designed to allow for elongation to cater for different transportation needs. Due to the overall length of the extendable trailer needed in this section, tough and strong materials with a yield strength of at least 460 MPa is used. This makes sure that the beam doesn’t sag during operations. In this section, the windmill trailer can be adjusted to the desired length to take up the task at hand.

The goose-neck provides a connecting point of the blade carrier trailer to the truck. It is designed to lift up and down to meet the different height of the 5th wheel of a truck. When the truck steers, goose-neck can pass the signal, and the trailer starts to steer. The steering system includes a steering function for the rear axles to help windmill trailer get through a curved road due to the 62 m length of the trailer.

How are windmills blades transported-Wind Turbine Blade Transport for Saleextendable trailer for sale



Wind farm transport and windmill tower carrier trailer, just like for any other type of wind turbine blade trailer must be thoroughly scrutinized before making the final buy decision. After identifying your needs, you should be able to know the kind of trailer you are looking for. However, that is not all that you will always need.

There are some other aspects to look into including the trailer quality, delivery times, ability to customize and its reliability among others. Need more details of extendable trailer, you can contact us.
