Windmill Rotor Blade Lifter for 80m Blade Transportation will be sent to Vietnam
Vietnam customers found us on Google and they said that TITAN extendable semi trailer and windmill blade adapter trailer are very popular in loacl. Many local people bought it from TITAN. So customers trust us very much and want to buy Adapter Trailer for 80m Blade Transportation from TITAN.

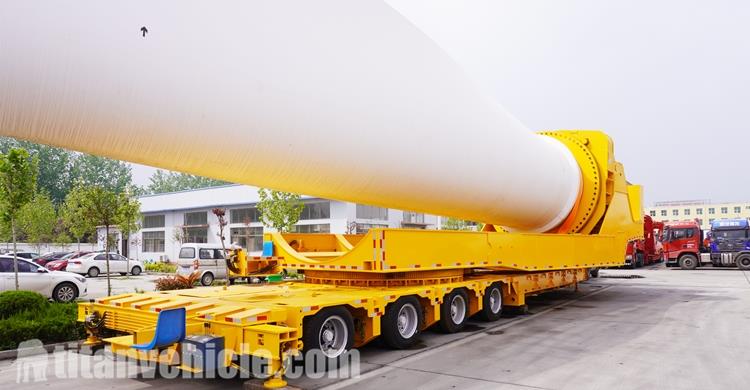

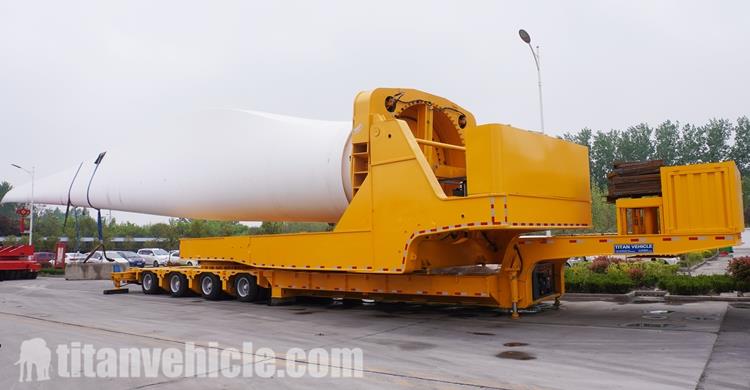

The customer requested to test the operation of the whole vehicle after completion. Our sales manager Alice personally went to the factory to supervise and test the Adapter Trailer for 80m Blade Transportation. Below is a picture of the test. All our semi trailers will carry out relevant vehicle inspections to ensure quality.

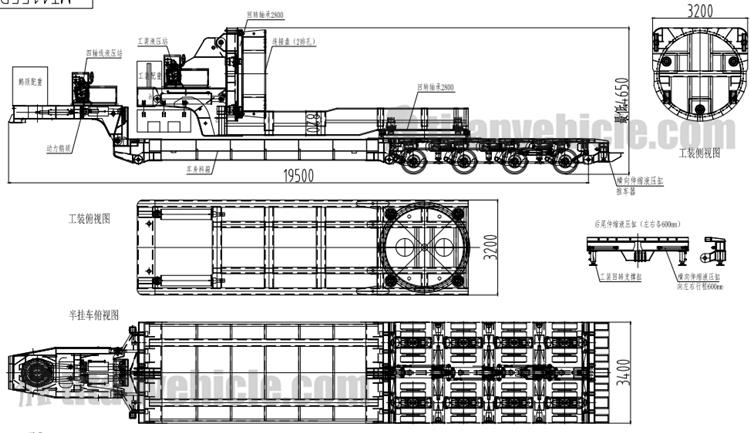

4 line 8 axle windmill rotor blade lifter
Classification of wind farm area
The general classification principle of the field category of the wind farm is: the plain area refers to the flat terrain without obvious undulations. The area where the natural slope of the ground is less than or equal to 3"; the hilly area refers to the area where the ground is undulating and gentle, and the natural slope is greater than 3. to less than or equal to 200. The relative height difference is within 200m; the hilly area refers to the area Areas where the natural slope of the ground is greater than 200 and the relative height difference is greater than 200m. Mountain wind farms mainly refer to the latter two types of wind farms.
The mode and condition of blade transportation
Under the current economic and technological conditions of our country, the development and construction of wind farms in the southern mountains. There are three possible blade transportation methods: road transportation, ropeway transportation and helicopter transportation. Different stand-alone capacity and different equipment manufacturers have different requirements for transportation, but they are not much different. The main parameters of the large-scale transportation of the wind farm: the diameter of the wind wheel is 110m, the length of the blade is 53.8m, the weight of a single blade is 13.46t, and the length of the blade fulcrum of the windmill rotor blade lifter is 30m. The main conditions to be met by various modes of transportation are described below.
3 axle windmill rotor blade lifter
Conditions required for road transportation
I) Pavement bearing capacity and width requirements. The road load capacity should not be less than 15 t/m per axle, and the axle load limit of the bridge passing through is greater than l0t. The load limit of the bridge is greater than 150t
2) The pavement width of the straight road is not less than 5m. The width of the road shoulder is not less than 1m, and the width of the road surface at the general curve is not less than 15m
3) The turning inner diameter of flatbed trucks shall be at least 50m, and the turning inner diameter of special vehicles shall be at least 30m.
4) The maximum longitudinal slope of the road is 9%, and the maximum longitudinal slope of the road with a curvature of more than 45° does not exceed 5%.
Conditions required for ropeway transportation
1) Ropeway height difference angle requirements: the height difference angle is generally below 45°, and the maximum is not more than 60°
2) Both ends of the ropeway need to choose a flat and open site as the unloading platform to meet the requirements of stacking blades and vehicle rotation. The area of ??the site is generally not less than 3,000 square meters, and the length of the short side is not less than 40m.
3) Span requirements for ropeway transportation. The span of aerial ropeway should be 200-500m
Conditions required for helicopter transportation
1) Carrying capacity requirements: the carrying capacity is not less than 20t.
2) The blade stacking site also needs to set up an aircraft parking area. The area of ??the site is generally not less than 4000 square meters, and the length of the short side is not less than 50 m
3) Better weather and meteorological factors, such as low wind speed, no rain, no fog, and high visibility (visibility is not less than 2 km)

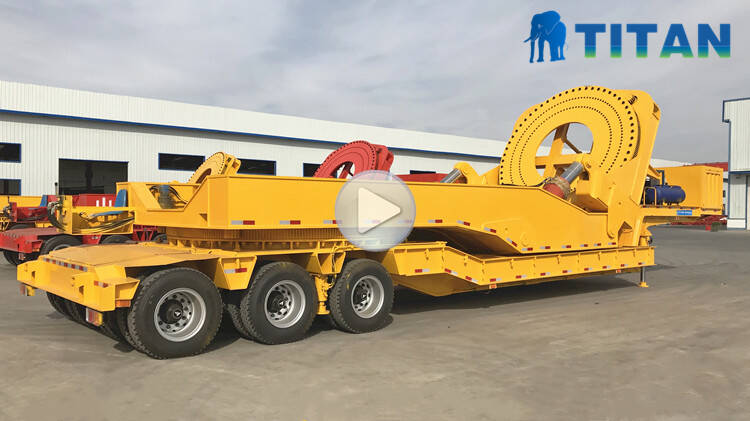

Video show of the windmill rotor blade lifter
